Waterproof Ip67 Cat6 Modular Plug RJ45 Plug Cat6 Utp RJ45 Plug for Led Rental Display Connector

Name: Waterproof Ip67 Cat6 Modular Plug RJ45 Plug Cat6 Utp RJ45 Plug for Led Rental Display Connector
Brand: CNLINKO
Price: 5.75 USD

Quality Waterproof Ip67 Cat6 Modular Plug RJ45 Plug Cat6 Utp RJ45 Plug for Led Rental Display Connector for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YT-RJ45-CPE-10-002

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $5.75-6.75

Type : RJ45

Application : Signal

Gender : male and female

Produce type : RJ45 connectors

Current rating(A) : 1.5A

Protection level : IP65

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Solder

Operating voltage : 1000V

Contact pin : Copper alloy(gold-plated)

Contact Now

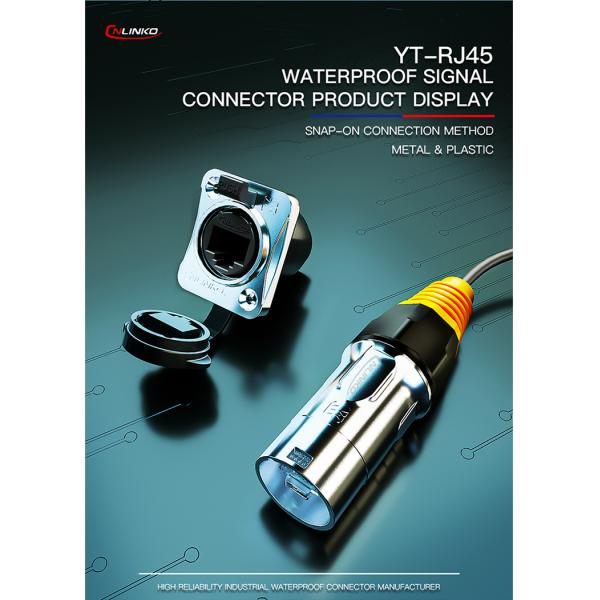

Waterproof ip67 Cat6 Modular Plug RJ45 Plug Cat6 Utp RJ45 Plug For Led Rental Display Connector

Product Description

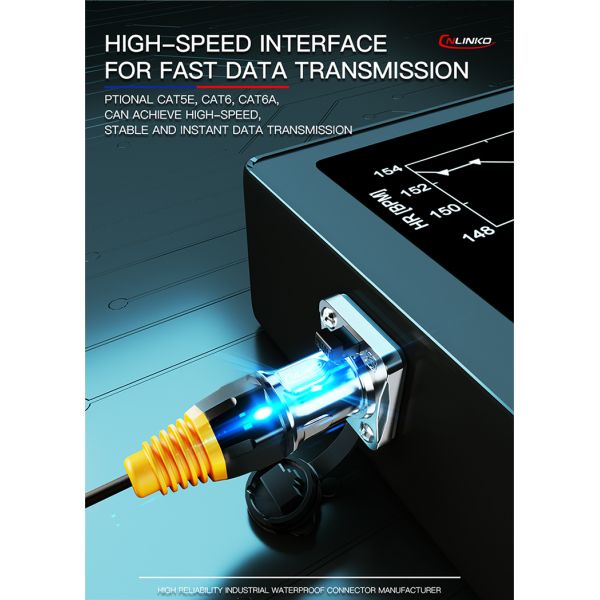

According to EIA568B each ISO/IEC11801 standard conforms to D grade or CAT3e, compatible with CAT5e.
D-panel connectors, metal housing and locking system are available.
Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
The cable protector has a sturdy die-cast housing and a unique ferrule clip.
Waterproof and non-waterproof design, the product meets IP65/IP67 protection level in the assembled state.
The rugged connection system provides a solution for broadband data transmission in harsh environments.
The connector does not have a network cable and a crystal head.

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	0.15m2 ~ 0.2mm2 /14~12AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	1000V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries

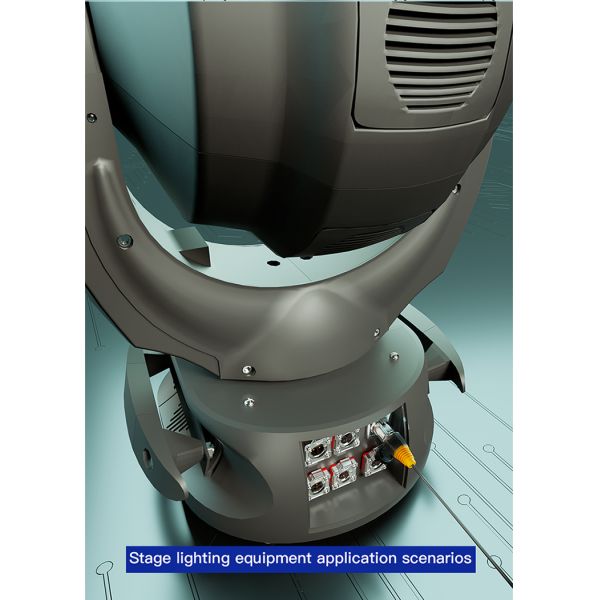

Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Waterproof Ip67 Cat6 Modular Plug RJ45 Plug Cat6 Utp RJ45 Plug for Led Rental Display Connector
