CNLINKO 8P8C RJ45 Connector Shield Cat6 RJ45 Socket Waterproof RJ45 Connector with Dust Cover

Name: CNLINKO 8P8C RJ45 Connector Shield Cat6 RJ45 Socket Waterproof RJ45 Connector with Dust Cover
Brand: CNLINKO
Price: 7.04 USD

Quality CNLINKO 8P8C RJ45 Connector Shield Cat6 RJ45 Socket Waterproof RJ45 Connector with Dust Cover for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YT-RJ45-CPE-03-001,YT-RJ45-JSX-04-001

MOQ : 2

Price : US$7.04-12.08

Type : RJ45

Application : Signal

Gender : plug and socket

Connector type : RJ45

Withstanding Voltage : 1000V dc

Durability : 500 circles

Material : PBT, BLACK

Contact : Copper Alloy

Coupling ring : /

Working Temperature : -40℃ ~ 80℃

Connecting mode : plug/unplug

waterproof rate : ip67

Rated current : 1.5A

Contact Now

CNLINKO 8P8C RJ45 Connector Shield Cat6 RJ45 Socket Waterproof RJ45 Connector with Dust Cap

Product Description

According to EIA568B each ISO/IEC11801 standard conforms to D grade or CAT3e, compatible with CAT5e.
Shielding system - high frequency noise immunity and electromagnetic interference protection.

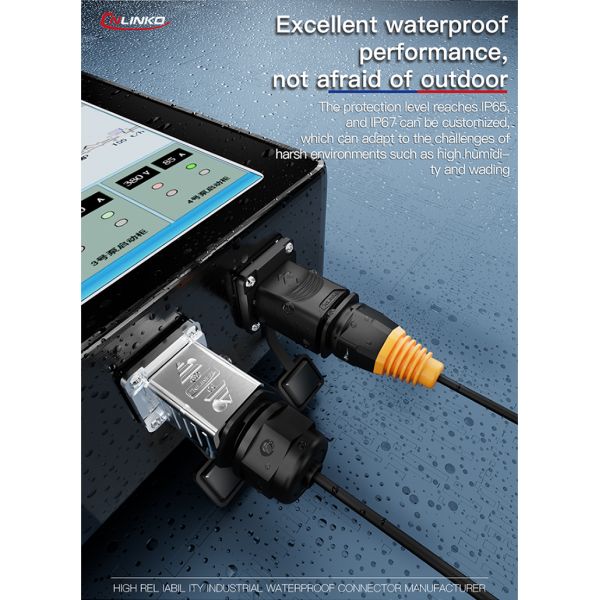

Waterproof and non-waterproof design, the product meets IP65/IP67 protection level in the assembled state.
The connector does not have a network cable and a crystal head.

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	1000V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO 8P8C RJ45 Connector Shield Cat6 RJ45 Socket Waterproof RJ45 Connector with Dust Cover
